the underground railroad-amazon limited series
(april-july 2019)
Below are scale models of sets that were built for The Underground Railroad (Directed by Barry Jenkins)
Below are scale models of sets that were built for The Underground Railroad (Directed by Barry Jenkins)

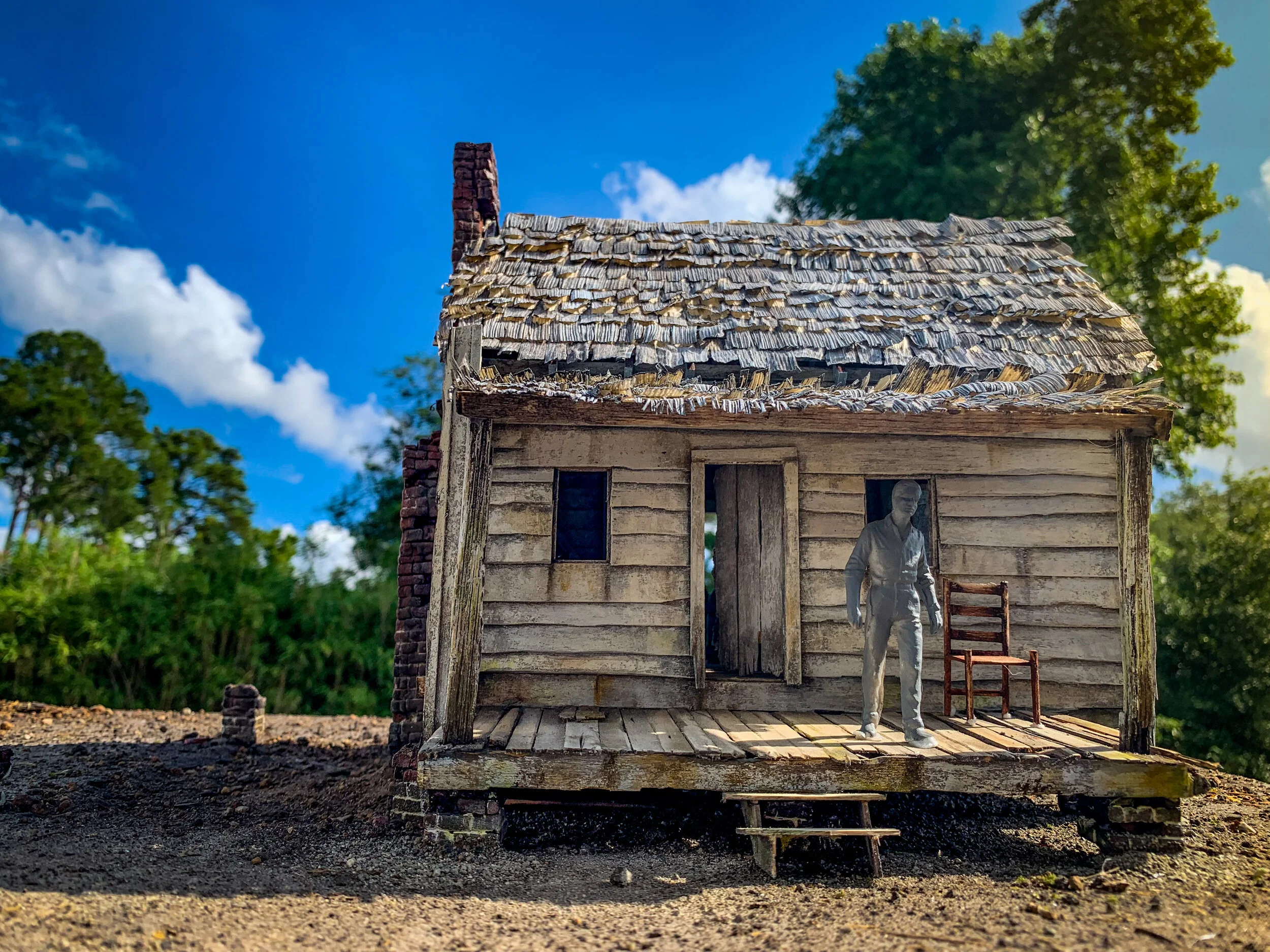

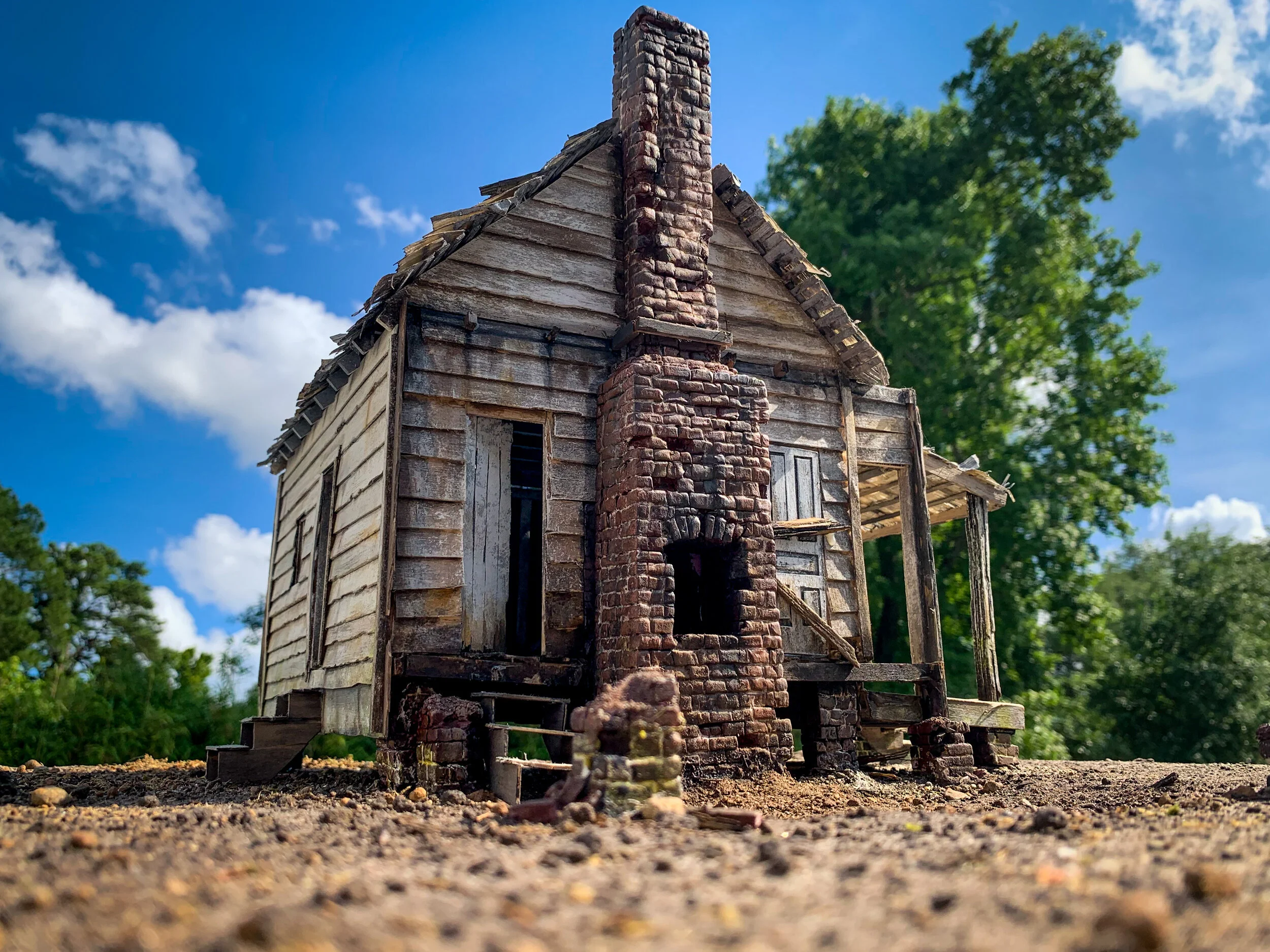

1/2” Scale model of Mabel’s Cabin. Gray figure for reference is 3” tall.
1/2” Scale model of Mabel’s Cabin.

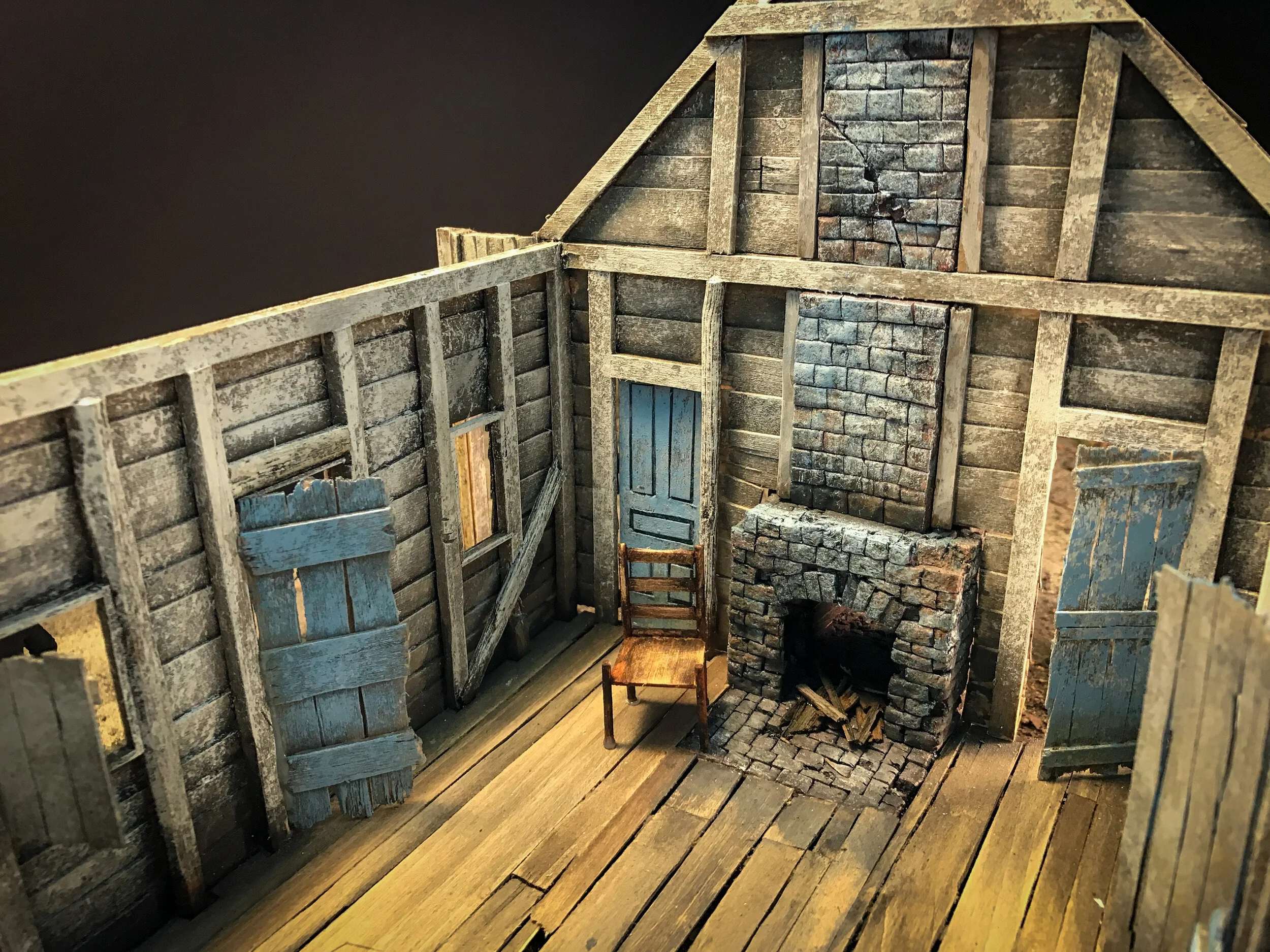

1/2” Scale model interior of Mabel’s Cabin.

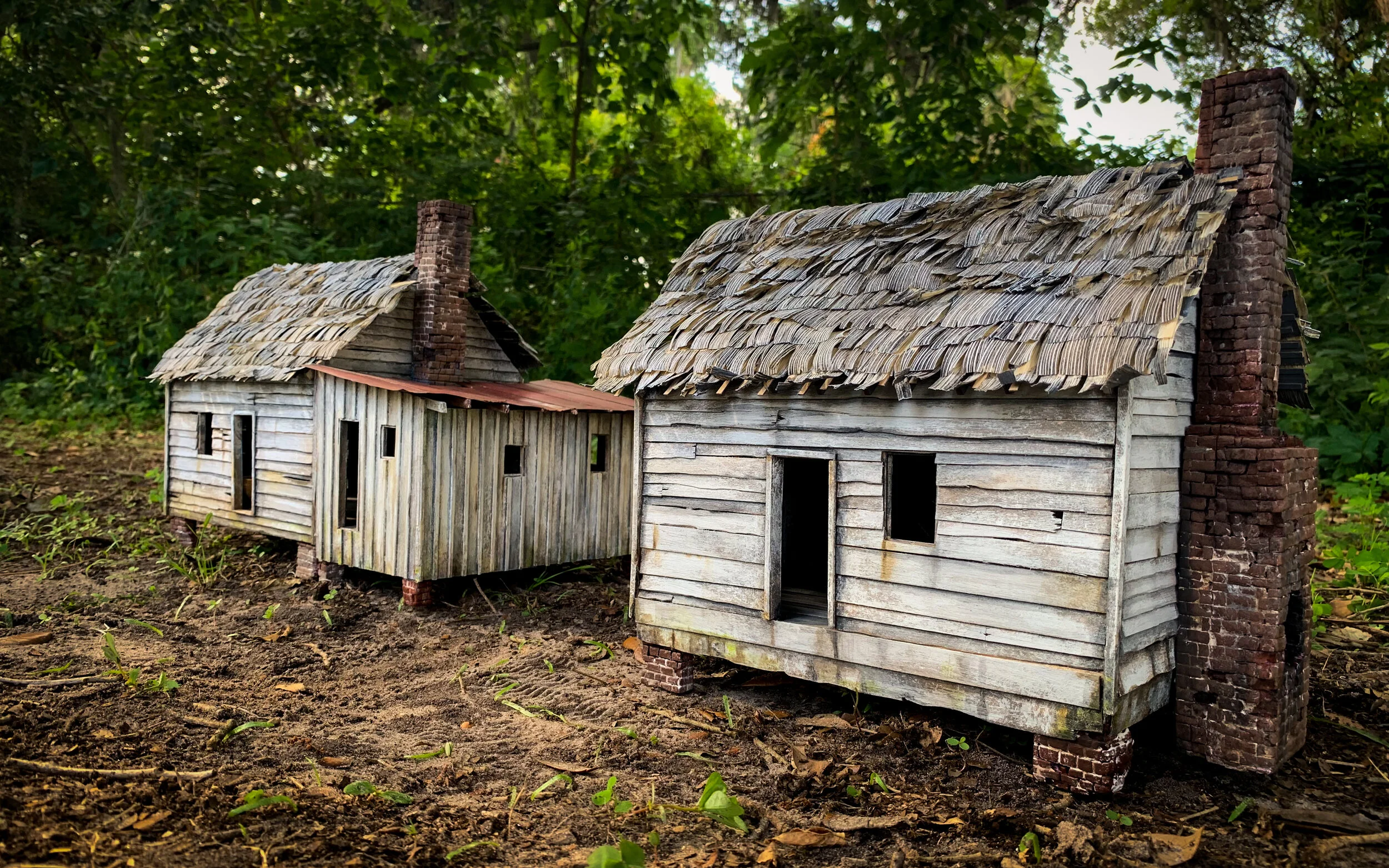

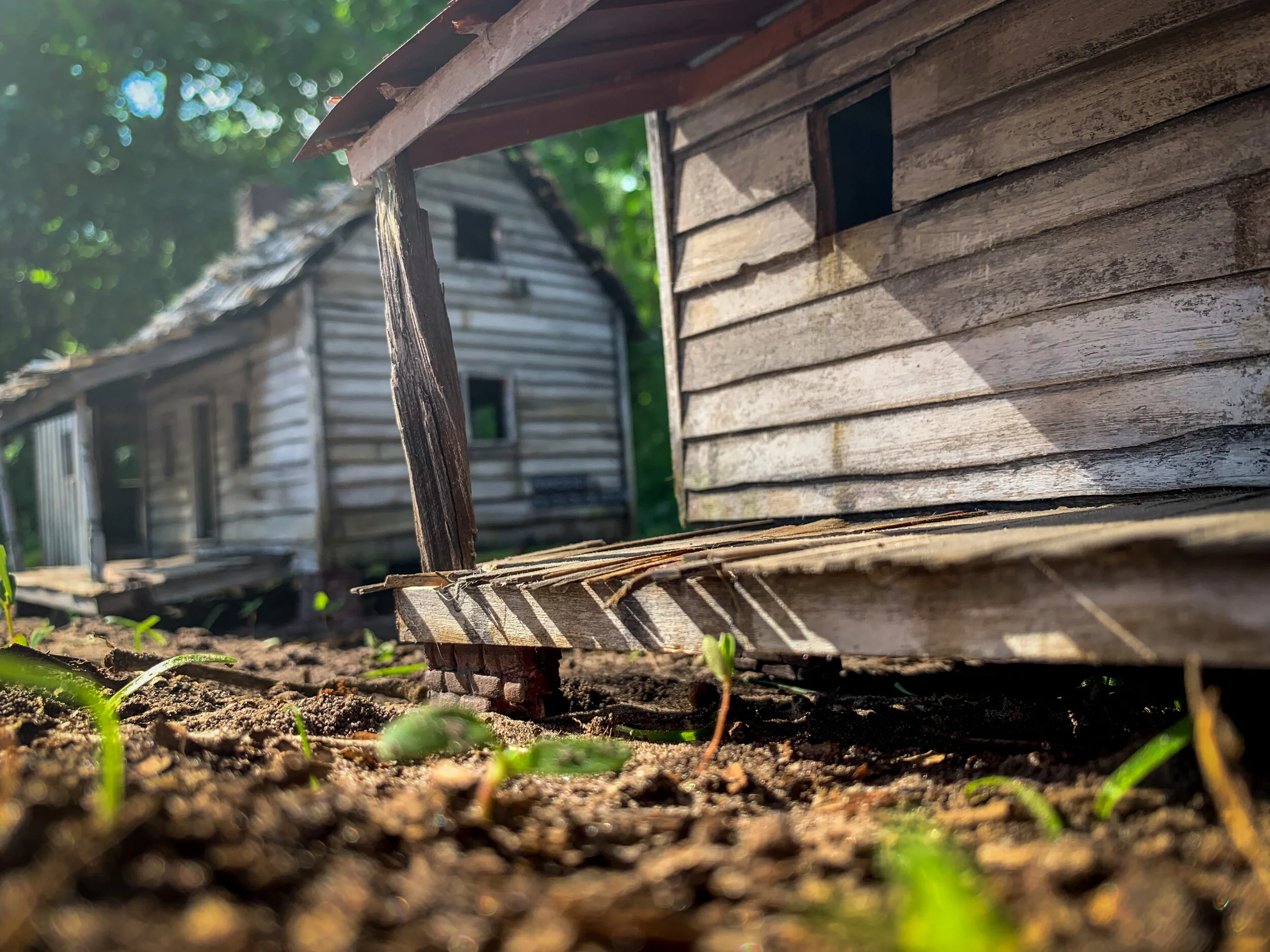

1/2” Scale models of Franklin’s (left) and Jockey’s (right) cabins.
1/2” Scale models of Franklin’s (left) and Jockey’s (right) cabins.
1/2” Scale models of Franklin’s (left) and Jockey’s (right) cabins.
Bass and Balsa wood construction with wood glue. In scale, siding ranged from 6” to 14” in width.
Cabin nearly completed with porch installed with posts. Roof frame complete, but needs to be stained and have shingles applied.

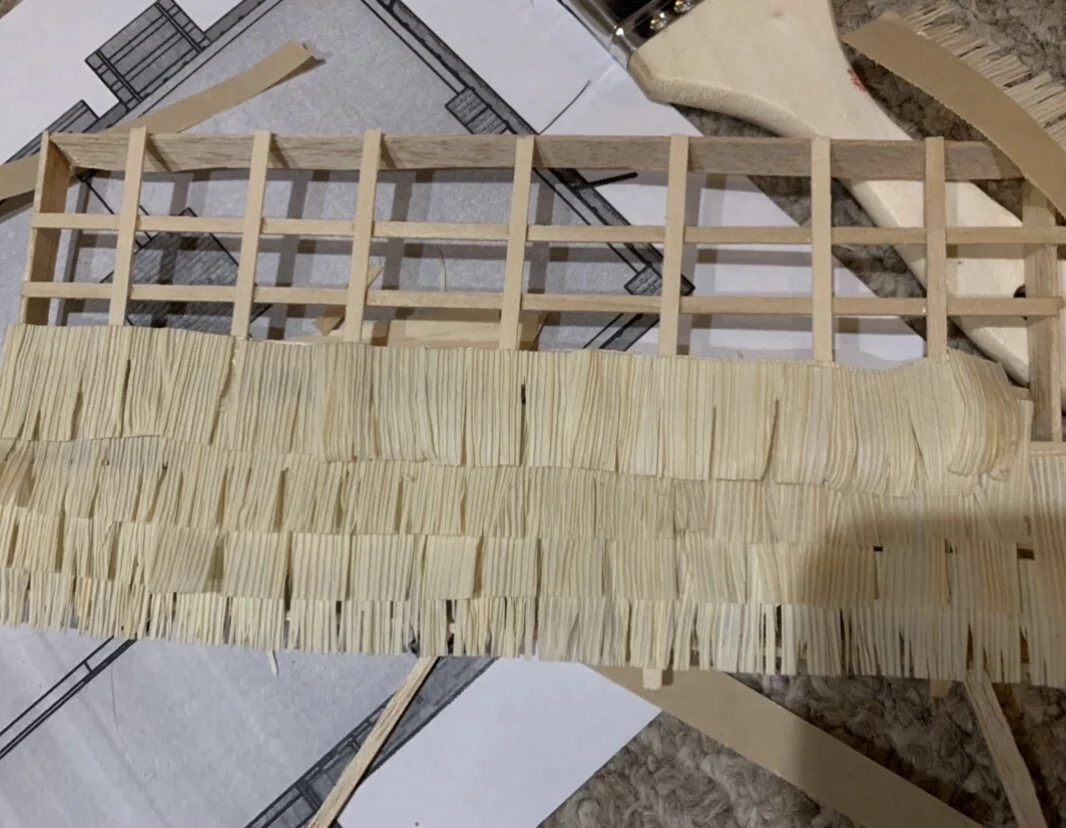

Shingles were made of corn husk cut into strips. Each strip was applied using double sided tape, then painted to the desired look.

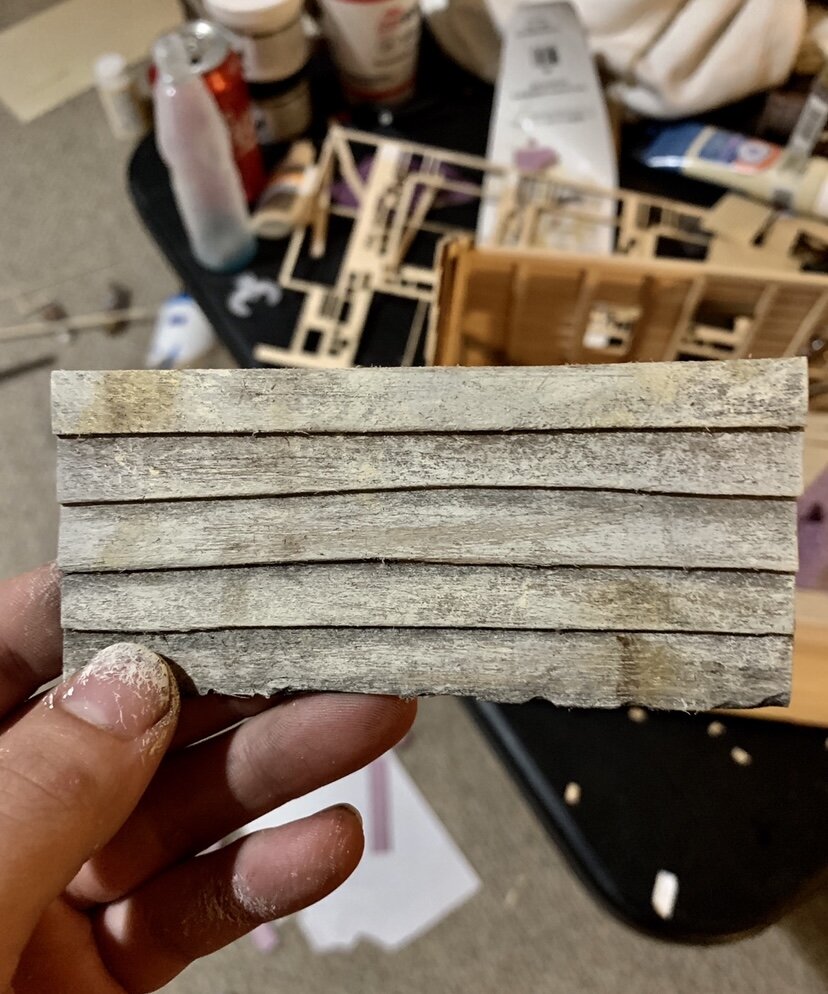

My test paint sample I made before painting the three cabins. I stained the wood with a black/brown wash. Then I stippled ceramacoat white paint on top. Then, I weathered the finish with a series of black, brown, yellow, and green washes.
Scale period furniture I created with balsa wood and toothpicks.

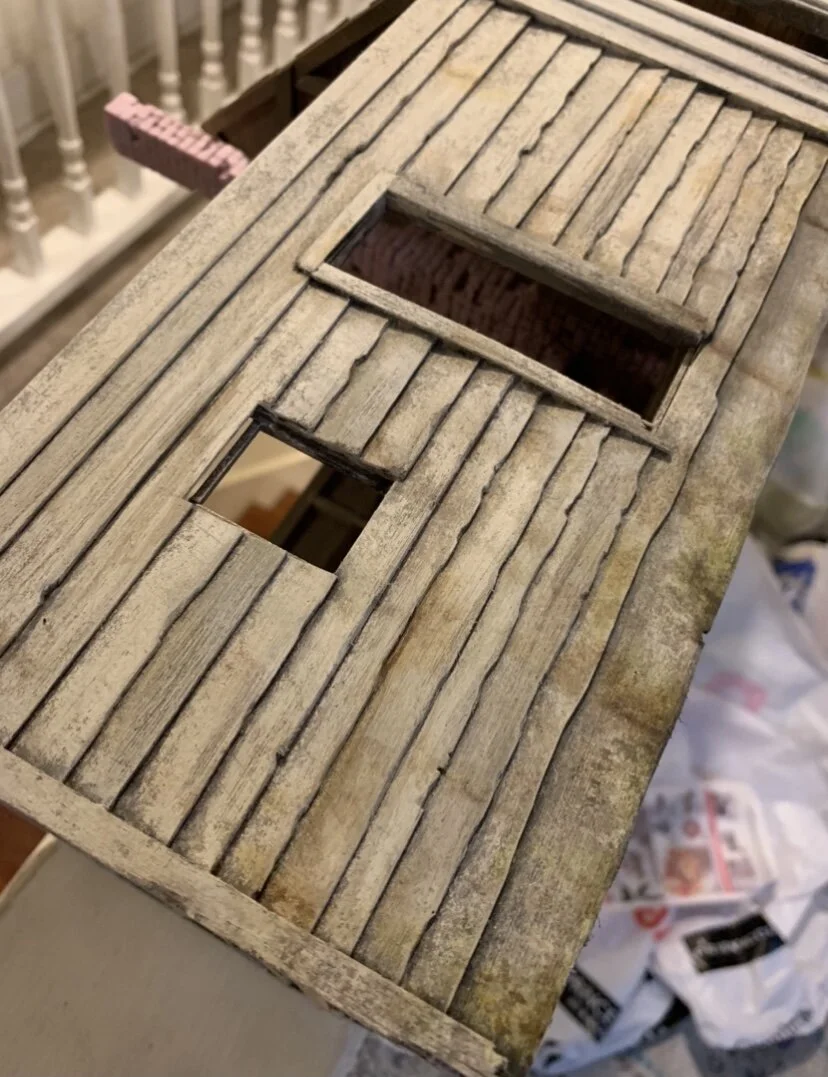

I painted the first wall of Mabel’s cabin while looking at my paint sample.
All the brick work was hand carved out of pink XPS foam. Then it was textured with rocks, aluminum foil, and a hammer.

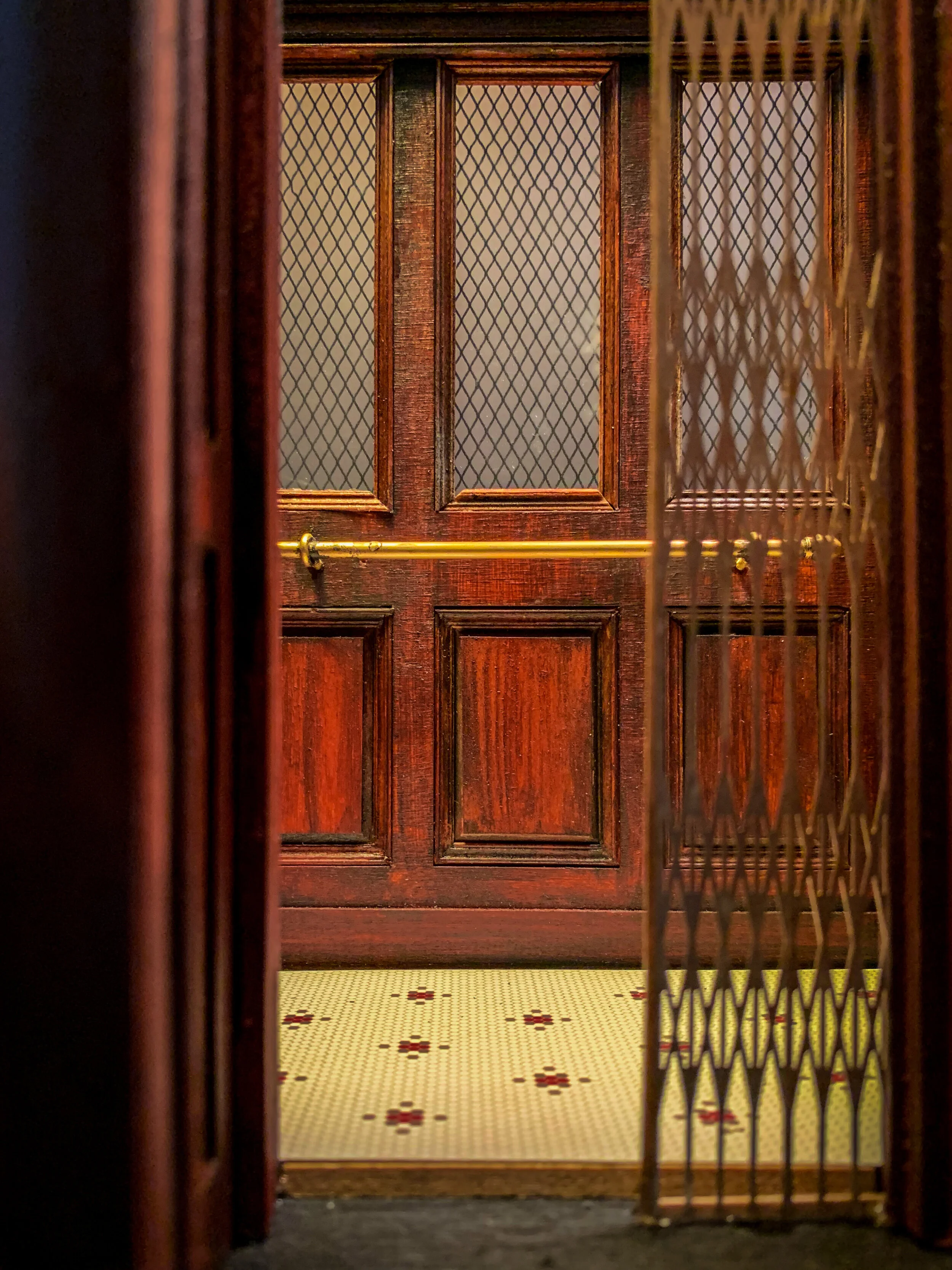

1” scale model of the Elevator set. Scissor gate was laser cut bristol board, painted with metallic gold paint. Cut file by Jurasama Arunchai.

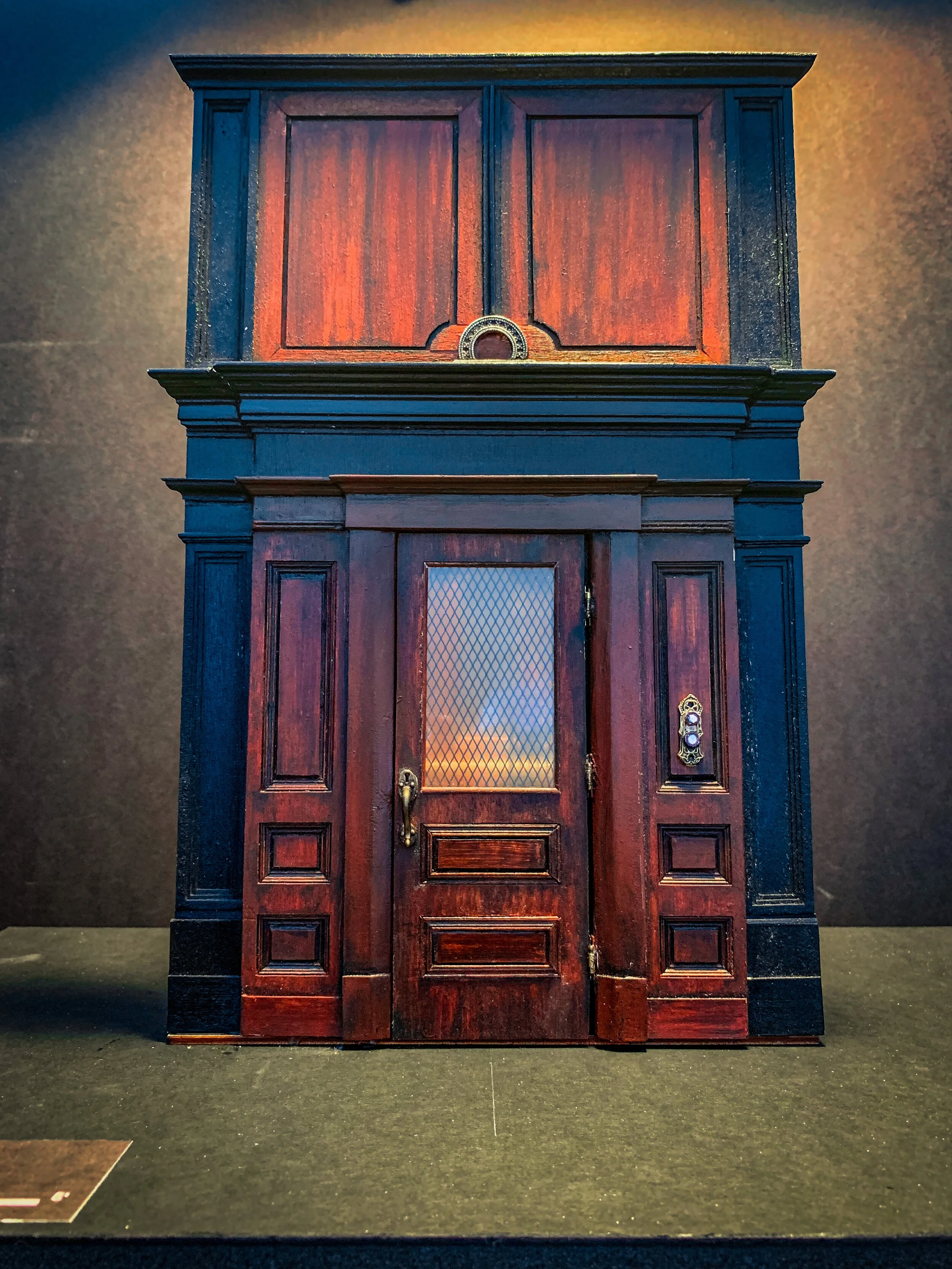

1” scale model of the Elevator set (fully painted). Painted using gloss black spray paint, as well as golden acrylic paints to emulate the wooden texture.

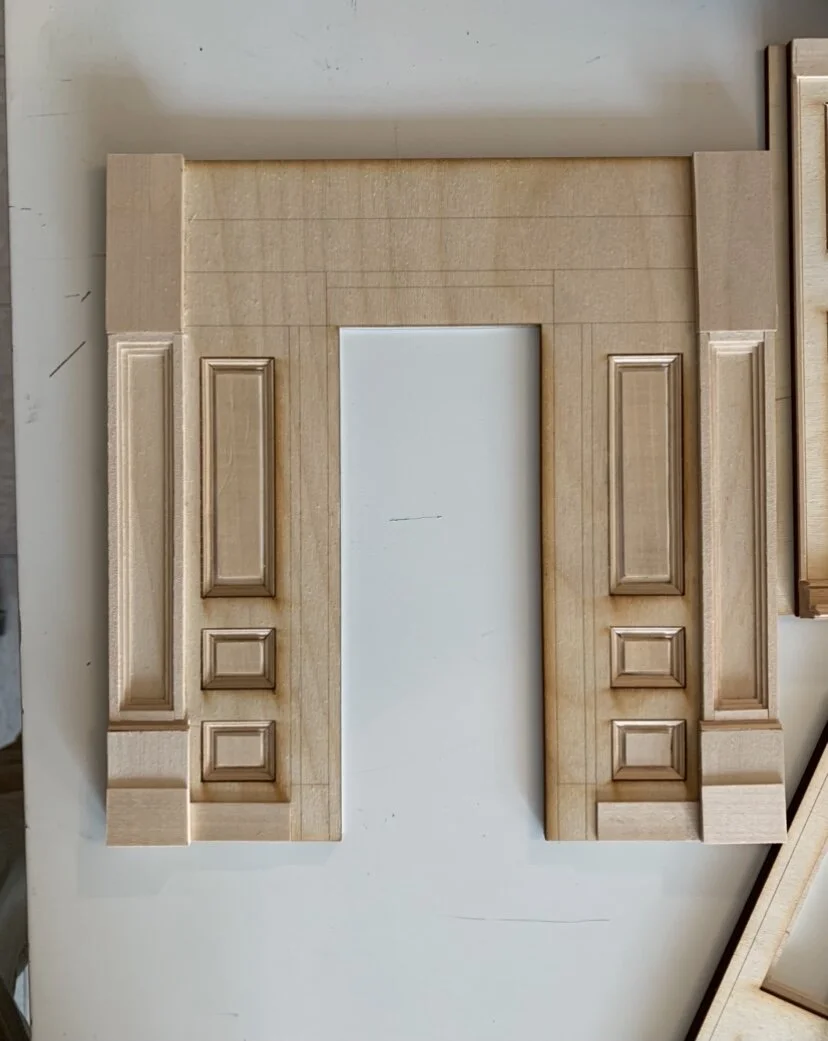

Work in progress of the 1” scale Elevator model. The base layer was laser cut out of 1/8” Plywood (Cut files by Jurasama Arunchai) Then, the layers of detail were built up using bass wood and doll house molding.
I assisted Jurasama Arunchai in carving the Ghost Tunnel out of Blue XPS foam to get the rock texture. Then I painted the Ghost Tunnel using Golden Acrylics in Burnt Sienna, Raw Sienna, Raw Umber, and Black colors.
I assisted Jurasama Arunchai in carving the Ghost Tunnel out of Blue XPS foam to get the rock texture. Then I painted the Ghost Tunnel using Golden Acrylics in Burnt Sienna, Raw Sienna, Raw Umber, and Black colors.
I assisted Jurasama Arunchai in carving the Ghost Tunnel out of Blue XPS foam to get the rock texture. Then I painted the Ghost Tunnel using Golden Acrylics in Burnt Sienna, Raw Sienna, Raw Umber, and Black colors.

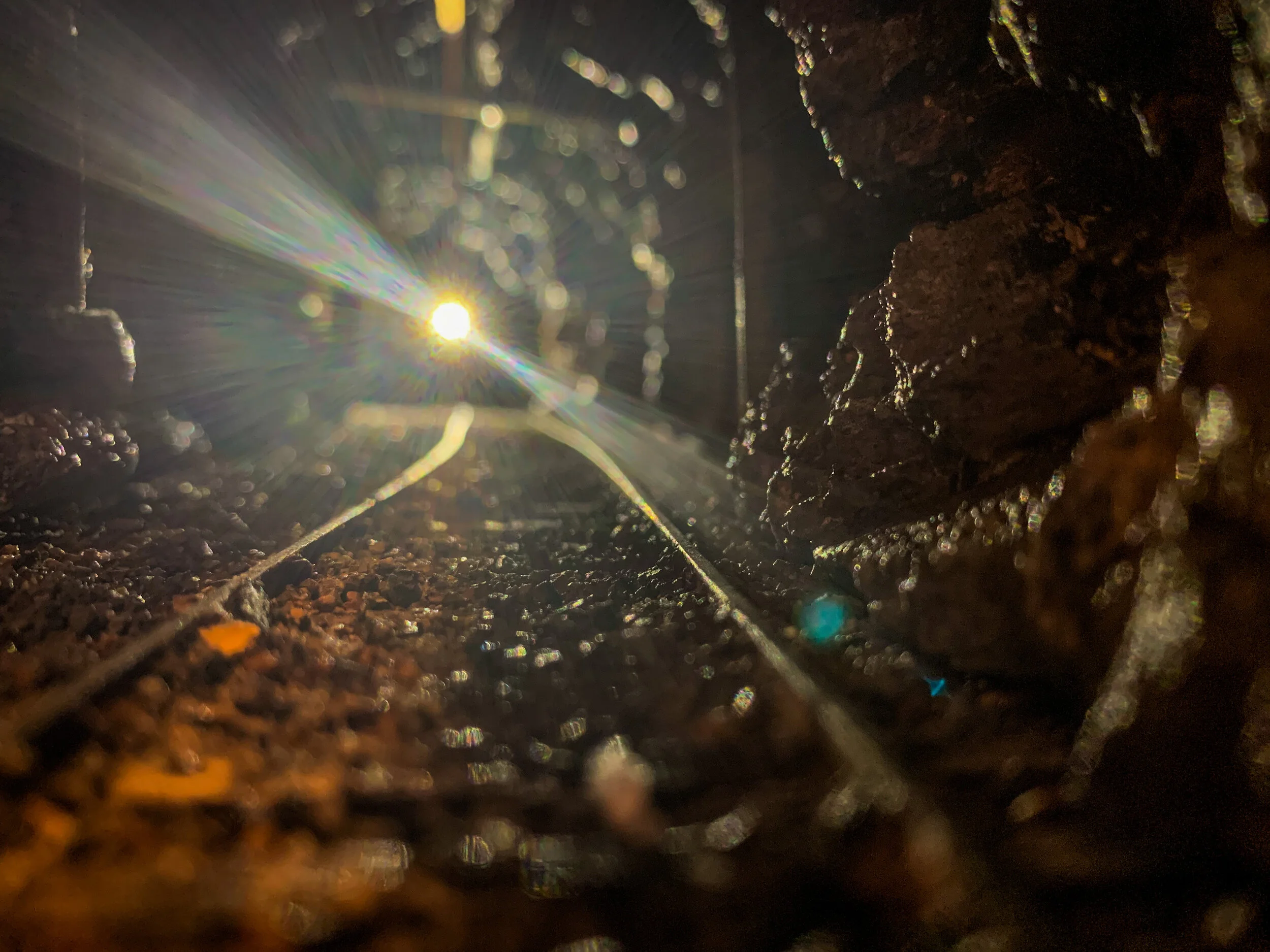

Assisted Jurasama Arunchai in carving and painting a 6 foot model tunnel. Made of Blue XPS foam and painted with Gray and Brown Golden Acrylics.
Georgia Station made of blue XPS foam. Platform was made with balsa wood strips.

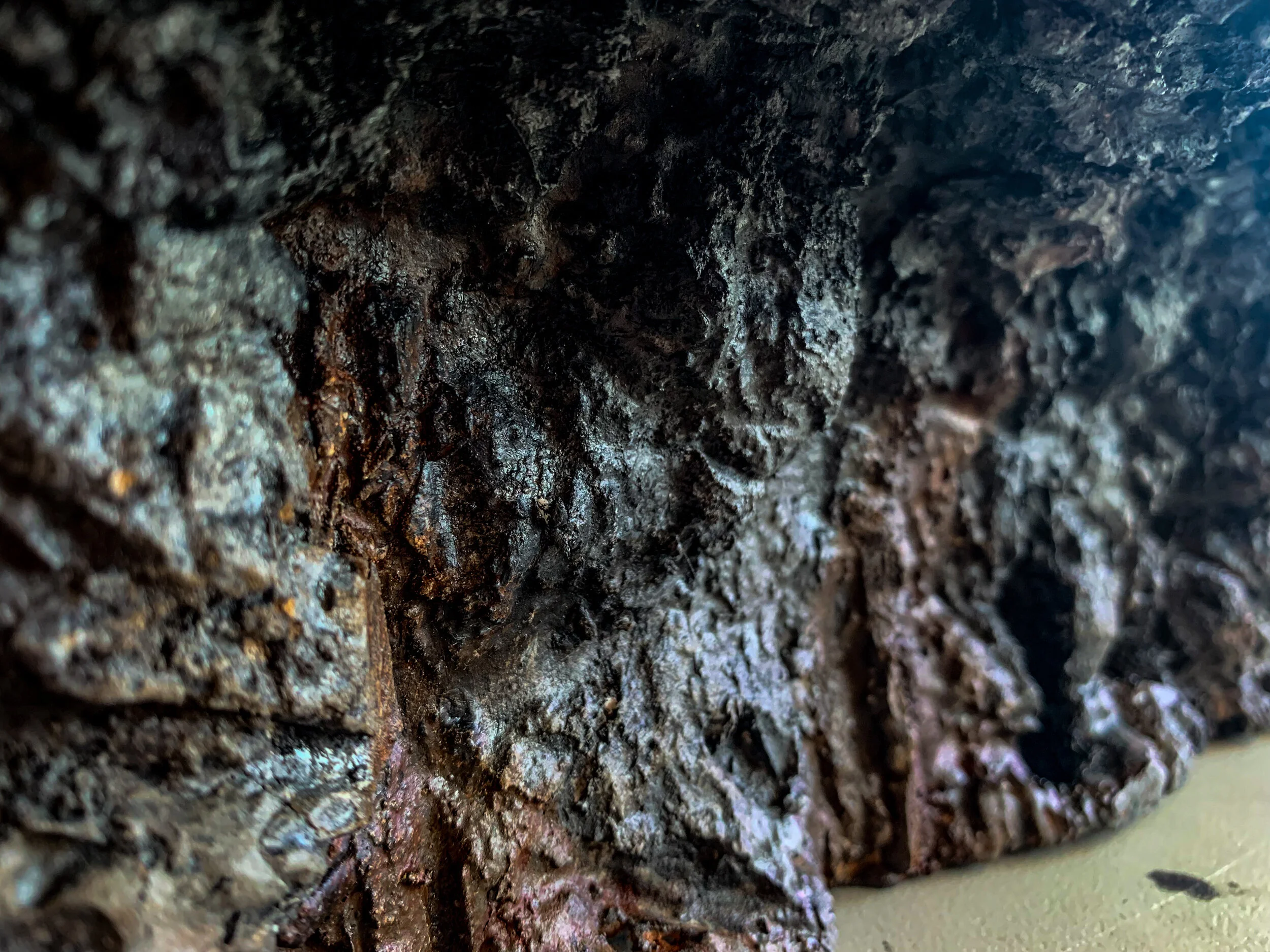

Close up of rock carving and paintwork

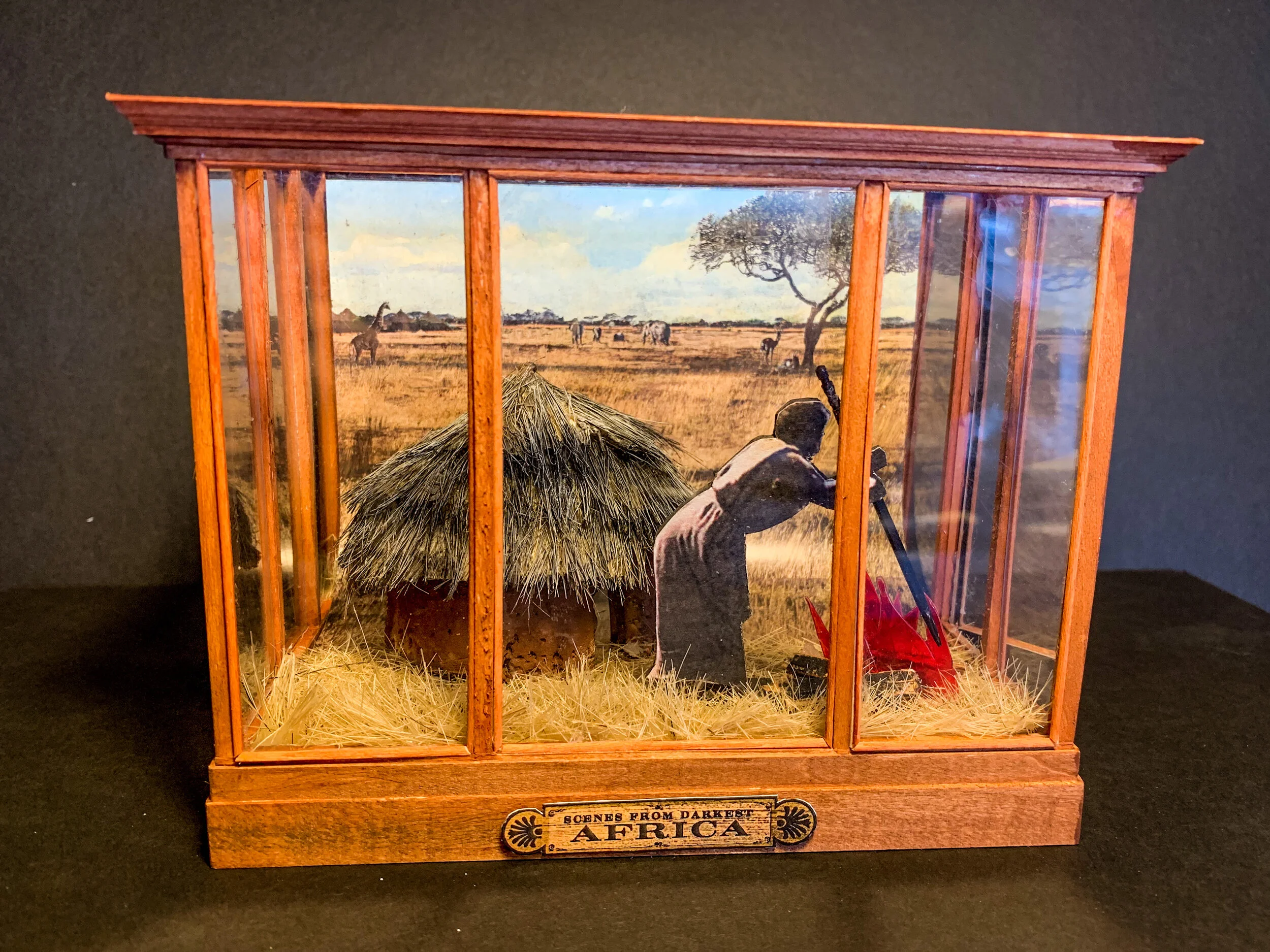

Display case for the Slave Museum. Case structure was made by Jurasama Arunchai. I pained the structure, installed the glass, and created the exhibits within the structure.
Display case for the Slave Museum. Case structure was made by Jurasama Arunchai. I pained the structure, installed the glass, and created the exhibits within the structure
Display case for the Slave Museum. Case structure was made by Jurasama Arunchai. I pained the structure, installed the glass, and created the exhibits within the structure
White model of the Museum location with our exhibits in place.
